TCRT5000 IR Sensor

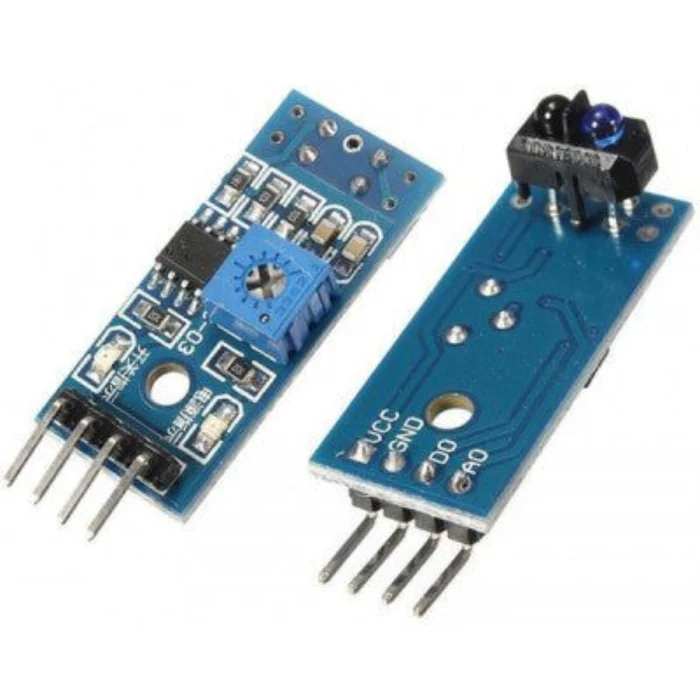

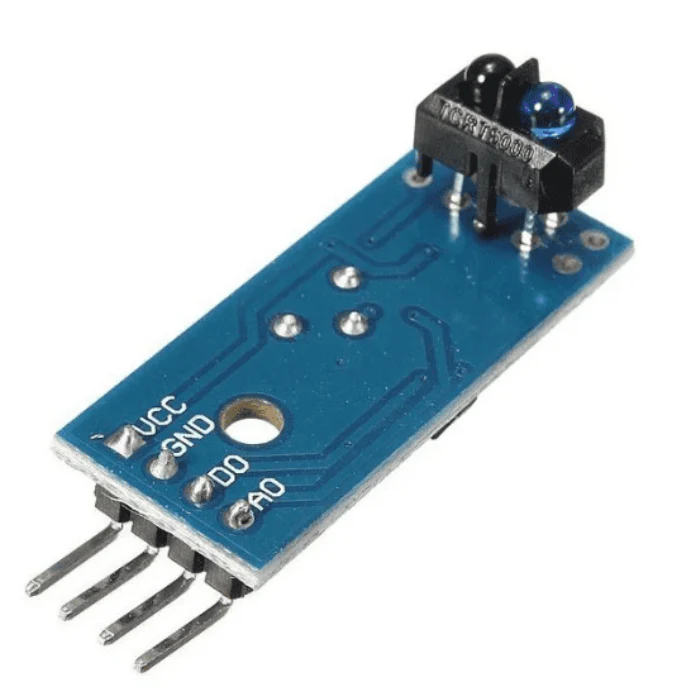

TCRT5000 IR Reflective Sensor Module

The TCRT5000 IR Sensor Module is a compact and reliable reflective optical sensor designed for object detection, line tracking, position sensing, and proximity-based applications. It combines an infrared LED emitter and a phototransistor receiver in a single package, enabling accurate detection of reflective and non-reflective surfaces.

The sensor operates by emitting infrared light and measuring the amount reflected back from nearby objects. Light-colored or reflective surfaces return more infrared light, while dark surfaces absorb it. This makes the TCRT5000 ideal for line-following robots, obstacle detection systems, and automation projects.

Key Features

• Based on the TCRT5000 reflective optical sensor.
• Built-in infrared emitter and phototransistor receiver.
• Adjustable detection sensitivity via onboard potentiometer.
• Fast response time and stable performance.
• Compact design for easy integration into DIY and embedded projects.
• Suitable for both analog and digital detection applications.
• Low power consumption and reliable operation.

Technical Specifications

• Operating Voltage: 3.3V – 5V DC
• Sensor Type: Infrared Reflective Optical Sensor
• Detection Method: Reflection-based sensing
• Output: Digital Signal
• Adjustable Sensitivity: Yes (Onboard Potentiometer)
• Detection Distance: Typically 1mm – 25mm (depends on surface reflectivity)

Working Principle

The TCRT5000 sensor emits infrared light toward a target surface. When the light strikes a reflective surface such as white paper, a significant portion is reflected back and detected by the phototransistor, causing the output to change state. Dark or black surfaces absorb most of the infrared light, resulting in little or no reflection. This difference enables accurate detection of lines, objects, and position changes.

Applications

• Line Follower Robots
• Object Detection Systems
• Proximity Sensing
• Shaft Encoder Position Detection
• Reflective Material Detection
• Industrial Automation Projects
• Mechanical Limit Switch Replacement
• Paper, Card, and Tape Detection Systems

Package Includes

• 1 × TCRT5000 IR Reflective Sensor Module
